模組規格書

MODULE SPECIFICATION

                                                            廣州臻視特光電---www.74cmgs.com.cn

編號（NO.）: P7F01M-084S-V1.1 類型（Type）:戶內模組（Indoor type ）

像素間距（Pitch）:7.62mm          LED規格（LED spec）:SMD3528

亮度（Brightness）:1100Nits

驅動方式（Driver fashion）：1/8掃 （1/8 Duty constant current）

模組結構（Module structure）:燈驅合一（Combined diver board）

一模組特點(Module Features)

◆7.62mm像素間距，R、G、B三種顏色的晶片封裝在一個膠體內組成單個像素，混色性能較好，顯示密度高達17222pixels/sqm；

With the smaller pixel pitch, three vertically arranged of R G B lamp which constitute a single pixel makes better color performance and the density can reach 17222pixels/sqm.

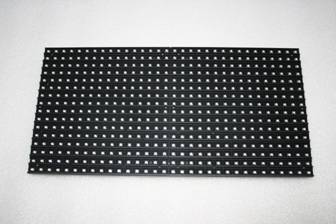

◆32*16顯示分辨率、244mm*122mm模組尺寸，燈驅合一結構，可靠性高；

With the resolution of 32*16, module size of 244mm*122mm, the structure of combined driver board ensures the high reliability.

◆視角大，顯示圖象柔和，像素密度大，適合室內觀看；

With larger view angel, soft image, high definition which is suitable for indoor application.

◆超高亮、低衰減、高可靠性、一致性好、高耐候性；

With the features of super brightness, low attenuation, high reliability, good consistency、and high weather ability.

◆效果無顆粒狀，勻色性較好，無馬賽克現象；

With the effect of non-granular, better color uniformity, non-mosaic phenomenon.

◆多層電路板結構設計，電流分布均勻，功耗小、散熱快，有效延長屏的壽命，可靠性高；

With the design of multi-layer circuit board makes the uniform of current distribution, quick heat dispelling, long life span and high reliability.

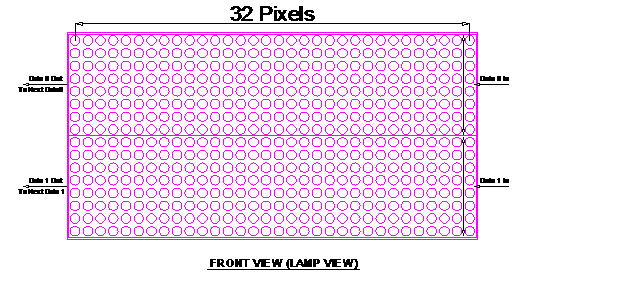

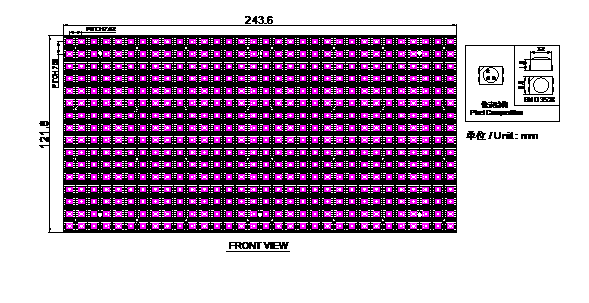

二 模組機械尺寸（Module Dimensions）

三 模組數據接口（Module Data Interface）

四 主要技術指標（Main Technical Parameters）
